Project Description
Sequential Valve Gate Controller
Hot runner compact sequential valve gate controller enables opening and closing valve gate nozzle. Pneumatic or hydraulic options. It is applicable in single and multi-cavity molds.
- 8-gate injection sequence control
- Delay time & open time indicator for each gate
- Selectable time display mode (1s, 0.1s, 0.01s)

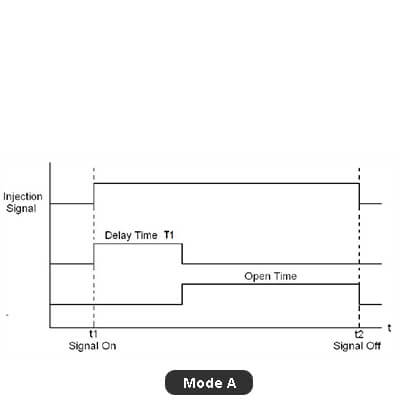

- 3 output control modes
- Selectable input signal type (DC24V or relay contact)
- Selectable output signal type (AC220V, DC24V or Relay contact)
- Optional DC24V/240W output for hydraulic valve
| Power Supply | AC85-265V, 50/60Hz | Zone Number | 1-8 |
|---|---|---|---|
| Control | Auto/Manual | Control Mode | Mode A/Mode B/Mode C |
| Input Type | DC24V/Relay contact | Output Type | AC220V/DC24V/Relay contact |
| Time Range | 0-999s/0.0-99.9s/0.00-9.99s | Load Capacity | AC220V output: 1A/zone
DC24V output: 50W or 240W Relay contact: 3A/zone |
More options for you: plug-in sequence timer controller (up to 12 zones), hot runner controllers, hot runner coil heaters, thermocouples.
