Hot Runner Temperature Controller Mainframes

Want to wholesale Hot Runner Temperature Controllers? Hitcontrols™ will be your best choice. With more than 26 years of experience, Hitcontrols™ is well versed in this field. Yes, you are dealing with masters.

Controls Zones & Modules

The Hot Runner  Mainframes, we offer the flexibility of 1, 2, 4, 6, 8, 12 to 48 zones of control at 15 Amps per zone. Support the plug-in temperature module: HC15-B, HC15-S, which is interchangeable with DME, Athena, IMS, MCS, Husky, INCOE control modules, and mainframes.

Special (30Amps, alarm output, communication function) or HMI-based larger control systems are available upon request.

Power Supply

Mainframe input power is 380V, 3-phase at standard, option 240V, 3-phase, 1&2 zones are 240V, single phase. All components are neatly contained within the mainframe.

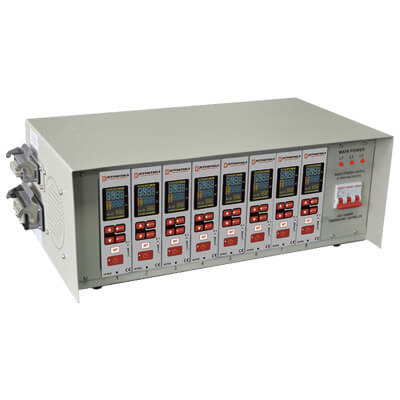

Tailored 5/8/12 Zone in DME style

(could be fixed in DME, Polimold, ITC floor stand )

Standard Series Mainframes

(2/4/6/8/10/12/16/20/24 zone)

Power Supply 3-phase, 240Vac, 50/60Hz

3-phase, 380Vac, 50/60Hz

Control Zones 1-24 zones
Suitable Module HC15-B, HC15-S

Modules from DME, Athena, PCS, ITC, etc.

Max. Amps per Zone 15Amps
Certification CE, RoHS
OEM Service Yes

Hot Runner Mainframes Features

  • Over-voltage protection

  • Reverse of sensor and heater protection

  • Short of load protection

  • Fuse blowout alarm

  • Triac breakdown alarm

  • Over rated-load alarm

  • Thermocouple open/reverse alarm

  • Optional alarm output/remote standby

  • More…

Each Mainframe Include

  • Modules
  • Connectors
  • Internal wiring & components
  • Power input line (3m at standard)
  • Output cables (3m at standard)
