Sequential Timer Controllers For Injection Molding

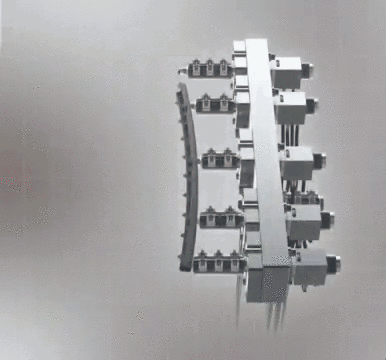

hot runner sequence timer controller

Our sequential timer controller enables accurately opening and closing multiple gates for pneumatic or hydraulic systems. It is applicable to multi-gated single-cavity parts. Improve mold balance and part quality. Essential control when molding complex or large parts. These cabinets are designed for the controlling of 2-24 valve gates.

Specifications

Power Supply AC85-265Vac, 50/60Hz Control Mode Mode-0/Mode-a
Control Auto/Manual Output Type AC220V/DC24V/Relay contact
Input Type DC24V/Relay contact Load Capacity AC220V output: 3A per zone

DC24V output: 30w per zone

Relay contact: 3A per zone

Time Range 0.0-999.9s/0.00-99.99s Working Temperature 0-50℃ (32-122℉)
Injection molding sequential timer controller Mode 0
Injection molding sequential timer controller Mode 1

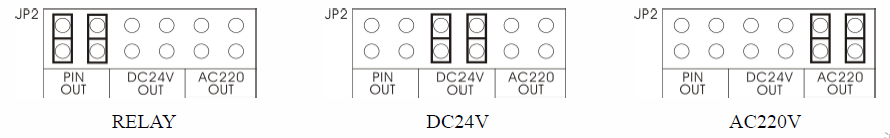

Output type setting

output type setting

output type setting
