30Amp hot runner temperature mainframes

30 Amps Hot Runner Controllers

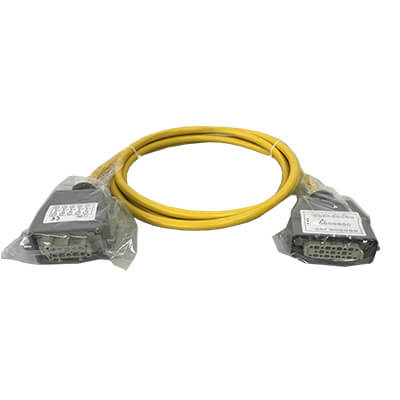

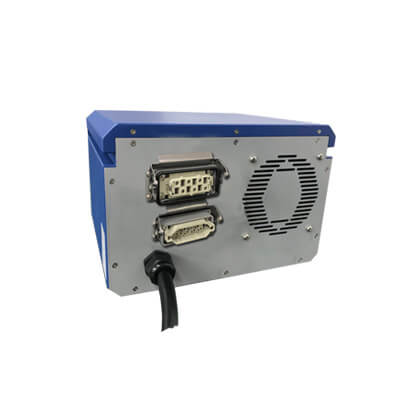

This series hot runner controllers are our new development for customers’ 30Amp hot runner system application. The power output connector and the thermocouple connector, located on the back side of the unit. It is designed to 30 amps of current, which will support the needs of most situations. Fuse for each temperature control module is 32A, AC500V.

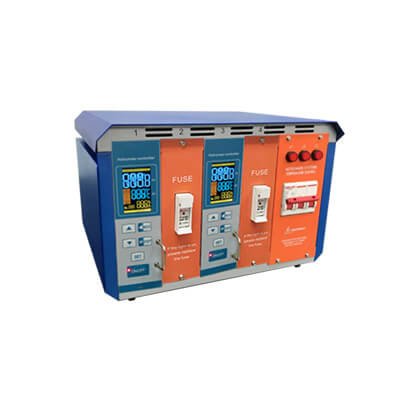

Hot Runner Temperature Mainframes offer the flexibility of 1 to 6 zones of control at 30 Amps per zone. Tempeature control module can not be compatible with other brands.

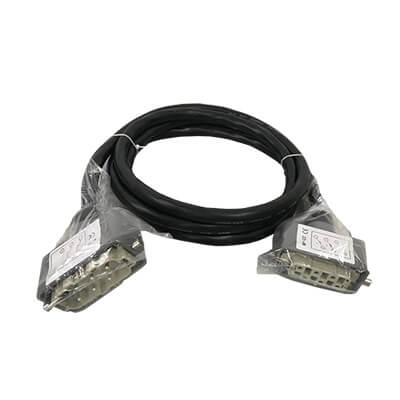

  • 30Amp hot runner controller_mold power cable
Parameters
Power Supply 3-phase, 240Vac, 50/60Hz

3-phase, 380Vac, 50/60Hz
Control Zones 1-6 zones
Suitable Module HRTC-GH (30A)
Max. Amps per Zone 30 amps
Mainframe Color Blue

30 amps Hot Runner Controllers Features

  • 30 amps per zone
  • Control accuracy: ±0.1% F.S
  • Fuse/triac error code
  • Heater/thermocouple mis-connection alarm
  • Heating invalid alarm
  • PID self-adjusting function
  • Rated load current limit
  • Thermocouple open/reverse alarm
